Space-Saving Power for Wheel, Brake, and Suspension Service

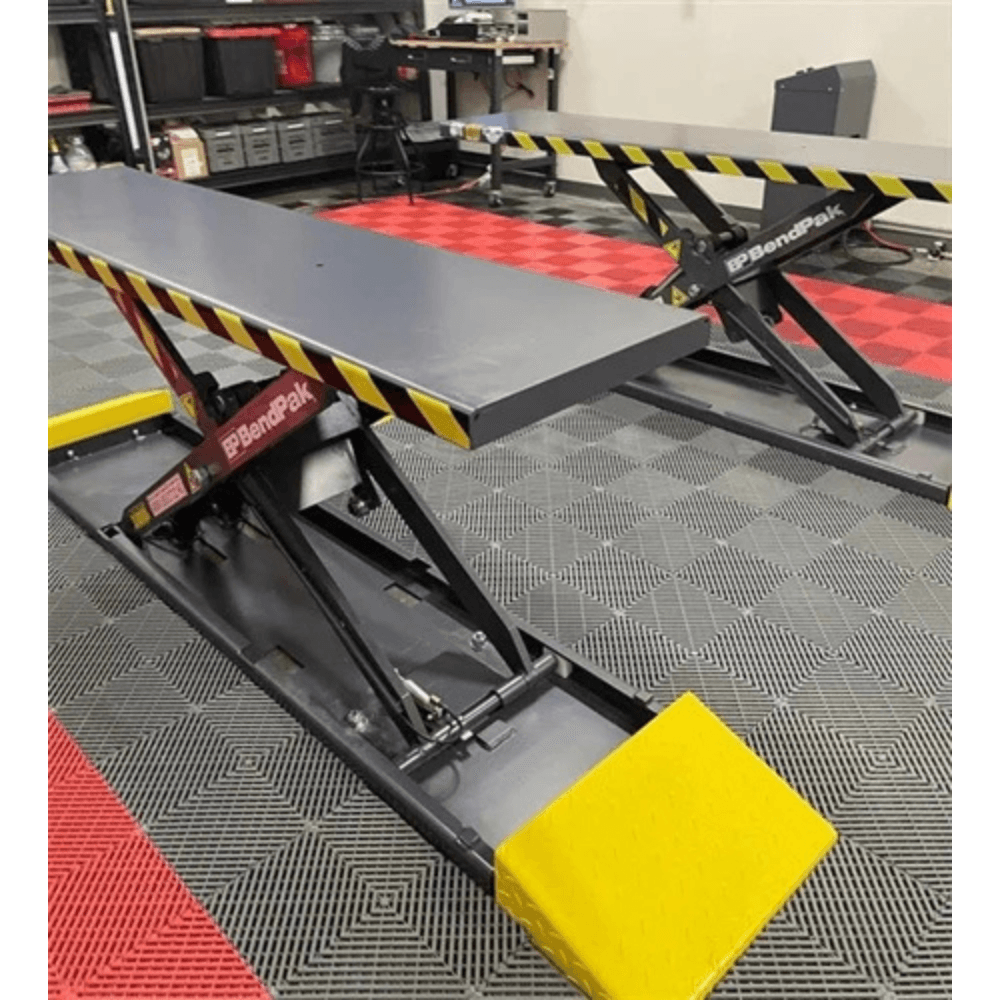

The MDS-6EXT is a high-performance, extended-platform mid-rise scissor lift designed for versatile vehicle lifting in both professional and home garages. With a 6,000 lb. lifting capacity and an open-center design, it provides easy access to undercar components, making it ideal for wheel, brake, and suspension service.
A key innovation in the MDS-6EXT is its pneumatic kicker system, which provides a boost during the initial lift phase. This air-powered assist makes it easier to overcome the mechanical resistance at lower heights, ensuring a smooth start from a fully collapsed position.
Engineered with reinforced steel support bars, dual hydraulic and equalizing cylinders, and automatic safety locks, the MDS-6EXT ensures outstanding durability, balance, and safety.
Key Features & Benefits
- 6,000 lb. Lifting Capacity – Ideal for cars, SUVs, and light-duty trucks.
- Extended Platform Design – Accommodates longer vehicles with increased lift versatility.
- Pneumatic Kicker System – Adds lifting force during the first 6″ of lift for easier elevation from the lowest position.
- Four Solid Steel-Scissor Frame Support Bars – Provides maximum stability and lifting strength.
- Dual Master Hydraulic Cylinders & Dual Equalizing Cylinders – Maintains safe, even lifting across both platforms.
- Automatic Solid-Steel Safety Lock Bars – Engage during ascent for enhanced safety.
- Stainless-Steel Pneumatic Cylinders – Enable easy lock release with the push of a button.
- Push-Button Safety Lock Release System – Operates remotely for increased user safety and comfort.
- Compact Design – With a minimum lowered height of only 5.25″, this lift is ideal for garages with limited space.
Technical Specifications
| Specification | Measurement / Detail |
|---|---|
| Lifting Capacity | 6,000 lbs. |
| Lifting Height (Min.) | 5.25″ |
| Lifting Height (Max.) | 35″ |
| Width | 85″ |
| Length | 88″ |
| Voltage Requirement | 208–240V |
| Air Requirement | Min. 50 PSI, 10 CFM |
Why Choose the MDS-6EXT?
- ✔️ 6,000 lb. Capacity – Handles most cars and light trucks with ease.
- ✔️ Extended Platform – Perfect for longer vehicles.
- ✔️ Pneumatic Kicker System – Enhances lifting from low heights effortlessly.
- ✔️ Durable Construction – Heavy-duty steel frame with automatic safety locks.
- ✔️ Ideal for Tight Spaces – Compact when lowered, great for home or commercial garages.
A Professional-Grade Lift for Modern Garages
If you need a powerful, compact, and reliable scissor lift for your shop or personal workspace, the MDS-6EXT is the smart choice. Its combination of advanced safety features, powerful lifting capabilities, and extended platform length makes it the ultimate mid-rise lift for vehicle maintenance.
Upgrade your garage with the MDS-6EXT – the high-performance lift that delivers power, safety, and versatility in one compact unit!
